| ITEM | Unit | KSQZ105.2 | KSQZ105.3 |
| Max.lifting moment | kN ·m | 105 | 105 |
| Max.Iiting capacity | kg | 5000 | 5000 |
| Max.hydraulic outreach | m | 8.01 | 9.92 |
| Slewing angle | o | 360°℃ontinuous | 360°Continuous |
| Stabilizer spread | mm | 5210 | 5210 |
| Max.operating pressure | MPa | 28 | 28 |
| Recommended pump capacity | L/min | 25 | 25 |
| Oil tank capacity | L | 90 | 90 |
| Dead weight | kg | 2011 | 2117 |

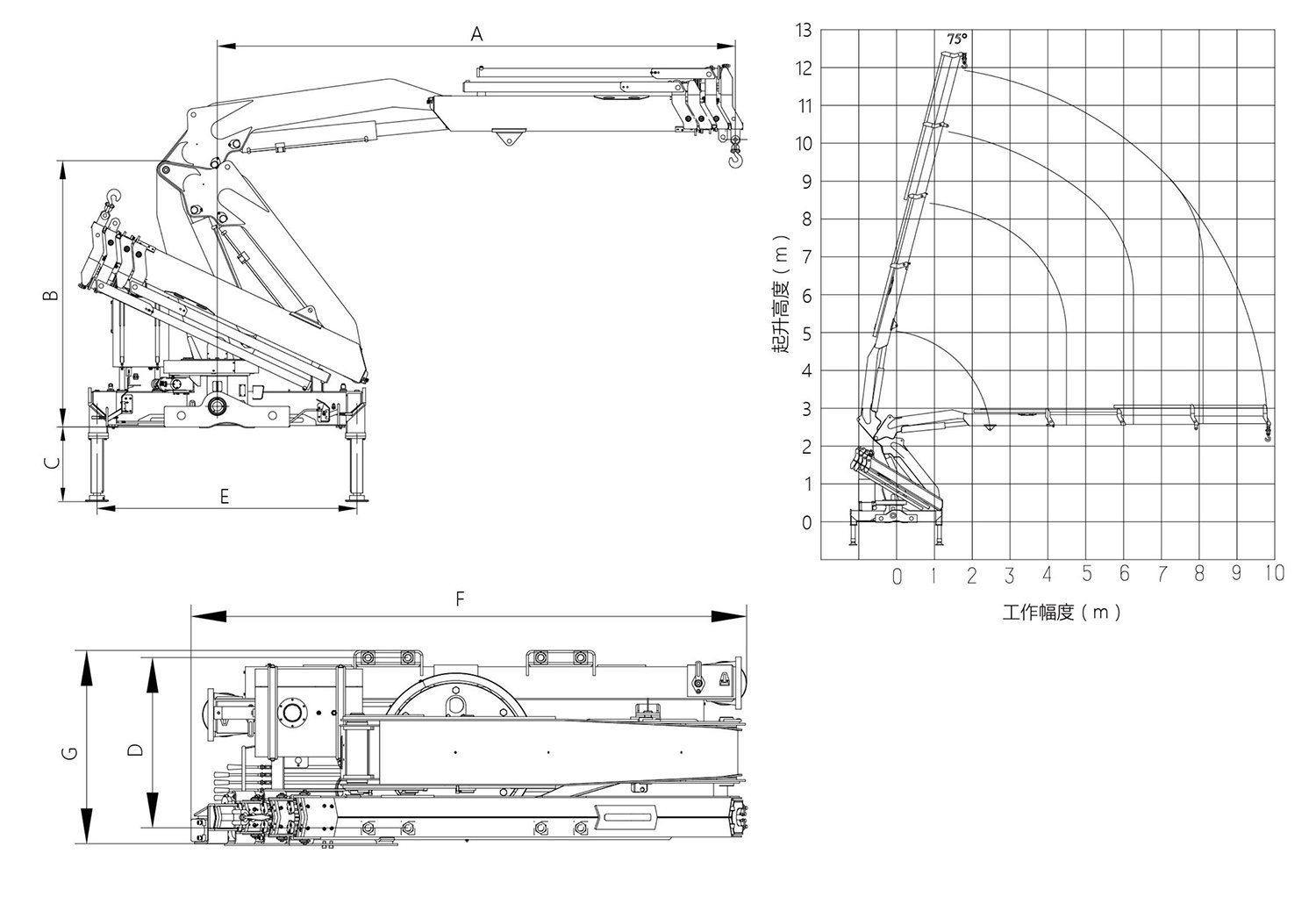

| mm | KSQZ105.2 | KSQZ105.3 |
| A | 4440-8010 | 4540-9920 |
| B | 2340 | 2340 |
| C | 752-1442 | 752-1442 |
| D | 749 | 749 |
| E | 2280-5210 | 2280-5210 |
| F | 2479 | 2479 |
| G | 880 | 880 |
RATED LIFTING LOAD
| KSQZ105.2 | ||||
| Amplitude(m) | 2.1 | 4.44 | 6.2 | 8.01 |
| Lifting capacity(kg) | 5000 | 2400 | 1600 | 1050 |
| KSQZ105.3 | |||||
| Amplitude(m) | 2.1 | 4.54 | 6.3 | 8.11 | 9.92 |
| Lifting capacity(kg) | 5000 | 2400 | 1600 | 1050 | 700 |
