Dimensions
Technical specifications
Standard equipment
Spreader:XCMG spreader is suitable for handling 20' and 40' standard containers. Telescoping, side shift and rotating function, as well as twist lock control are available. Rated lifting capacity: 45 t. Side shift: ±800 mm. Rotation angle: -105°～+195°
Cab:Dynamic moving full-view driver’s cab. Equipped with ergonomic seat, two point retractable seat belt, water cup holder, 12V and 24V power supply, radio, loudspeaker amplifiers and HD Reverse view system.
Air condition:High-power, fully automatic heating and cooling air condition.
Engine:QSM 11, in line, six-cylinder, water-cooled, turbocharged, electric control diesel engine, manufactured; Rated power 250 kW/2100rpm, max. torque 1674 Nm / 1400 rpm; Emission compliance: compliant with offroad U.S. EPA Tier 3/EU Stage IIIA;
Transmission:15.7TE30510, automatic transmission (with manual shift) manufactured by AmericaDana, with 5 forward and 3 reverse gears available.
Drive axle:D102PL341 heavy duty drive axle, manufactured by German Kessler.
Tires:6 diagonal tires, Tire specifications: 18.00- 25 40PR.
Brakes:Service brake: wet disc brake, acting on the front wheels, and equipped with independent cooling tank, high performance filter and radiator. Parking disc brake, acting on the front axle.
Steering:Equipped with full hydraulie power steering,and easy to use.
Hydraulic system:America Parker variable plunger pump and values, the system has compound action, high and low speed automatic switching(high speed when unloaded, low spend when loaded.), vertical lifting and spreader anti- swing function. Equipped with high performance filter and high power independent radiator.
Electric system:24V Can bus control system, two batteries, negative ground. Driving lights: three headlights, two turning signals in front of the vehicle; two turning signals ,two brake lights and two reversing lights behind the vehicle. Working lights: four working lights at the spreader locks, four working lights at the middle of the boom, four working lights behind the vehicle. Warning lights: one rotating alarm lamp at the back of the vehicle.
Safety devices:LMT, anti-tilting protection device for rear axle, 2.5m long distance astern radar, one 2kg fire extinguisher, automatic fire extinguishing system.
Frame:Frame is made of high tension steel, with antitorsion large cross-section.
Boom:Two-stage, quadrangular telescopic boom, anti-torsion design, is made of high tension steel.
Additional equipment
Spreader:Bromma spreader is suitable for handling 20' and 40' standard containers. Telescoping, side shift and rotating function, as well as twist lock control are available. Rated lifting capacity: 45 t. Side shift: ±800 mm. Rotation angle: -105°～+195°.
Coolant heating device:It is used to heat engine coolant, facilitating to start engine, applicable in cold areas.
Product parts listis as mentioned above, refer to theproduct quotation for specific parts.
Weight
| Item | Front Axle | Rear Axle | Total weight | Tolerance |
| Unloaded | 35850kg | 35350kg | 71200kg | ±3% |
| Rated load | 99860kg | 16340kg | 116200kg | ±3% |
| The axle loads listed in the table are the values when 45t Load located on the first row. | ||||
Working speeds
| Item | Unloaded | Rated load | Tolerance |
| Lifting speed | 420mm/s | 250mm/s | ±10% |
| Lowering speed | 360mm/s | 300mm/s | ±10% |
| Traveling speed | 25km/h | 21km/h | ±10% |
Spreader specifications
| Item | XCMG Spreader | Bromma Spreader | Tolerance |
| Lifting capacity | 45000kg | 45000kg | ≥ |
| Side shift | ±800mm | ±800mm | ±1.5% |
| Telescoping time | extend:25s Retract:11s | 15s | ±10% |
| Rotating time | 50S | 50s | ±10% |
| Shifting time | 15s | 15s | ±10% |
| Lock\unlock time | 1s | 1s | ±10% |

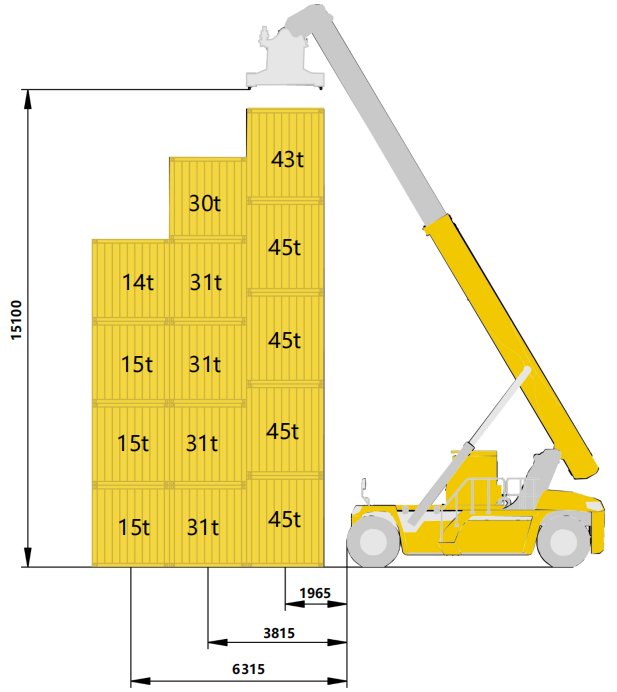

Lifting capacities
| Spreader | Max.Lifting Height | Max.Lifting Capacity | Number of Stacking |
| X C M G | 15375mm | 45t | 5(9’6“)-5(8’6”)-4(8’6”) |
| Bromma | 15100mm | 45t | 5(9’6”)-5(8’6”)-4(8’6”) |

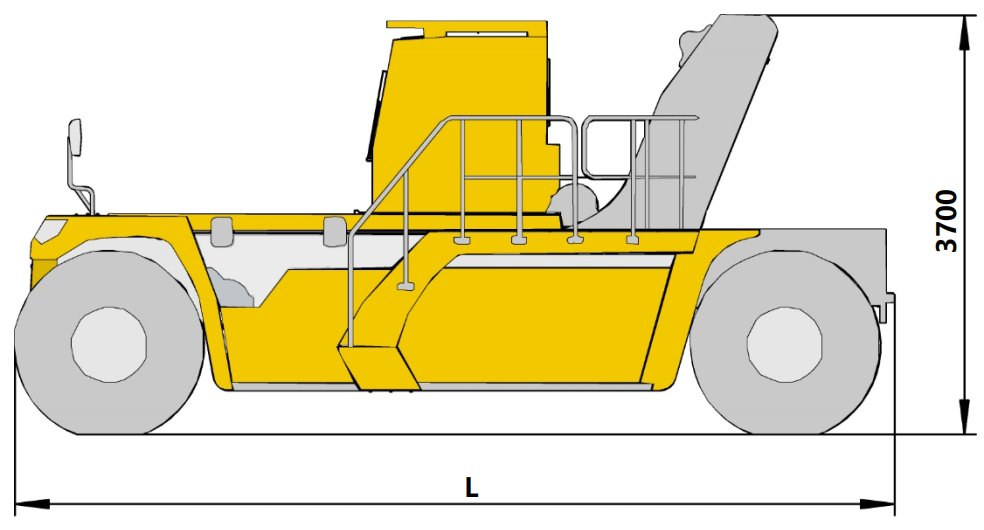

Dimensions of transported parts
| 1 | Main machine | |
| Weight | 31200kg | 35050kg |
| Qty | 1 | |
| Length L | 7596mm | 8035mm |
| Notes | Removing the counterweight B | Not removing the counterweight B |
Dimensions of transported parts

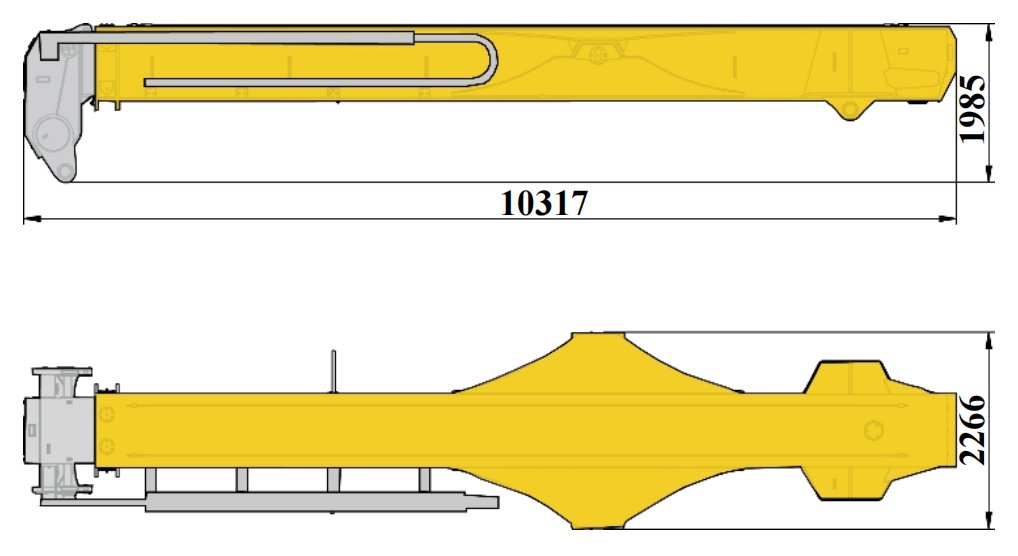

| 2 | Boom assembly |
| Weight | 13935kg |
| Qty | 1 |

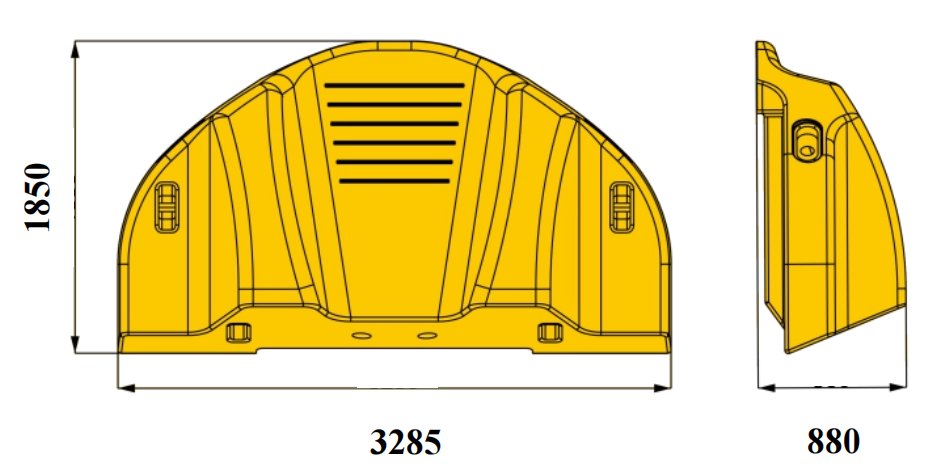

| 3 | Counterweight A |
| Weight | 13742kg |
| Qty | 1 |

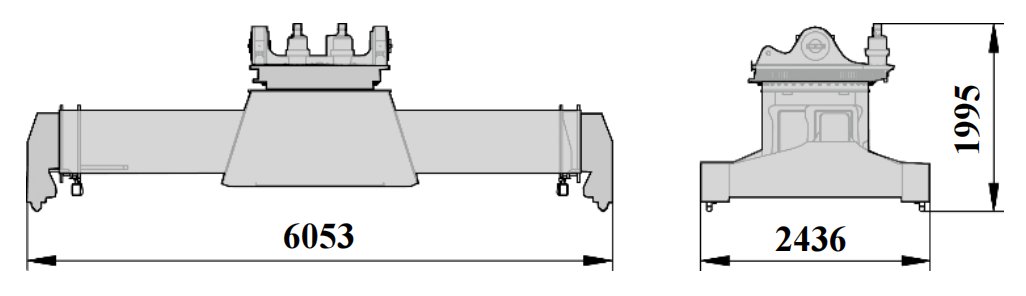

| 4 | Spreader |
| Weight | 8000kg |
| Qty | 1 |

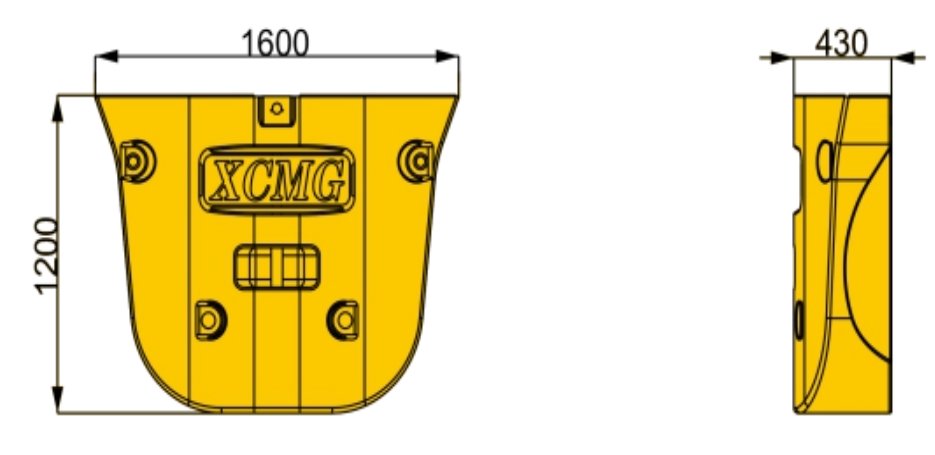

| 5 | Counterweight B |
| Weight | 3826kg |
| Qty | 1 |
NOTES: All of these are single piece weight, and boom assembly include boom and telescopic cylinder.

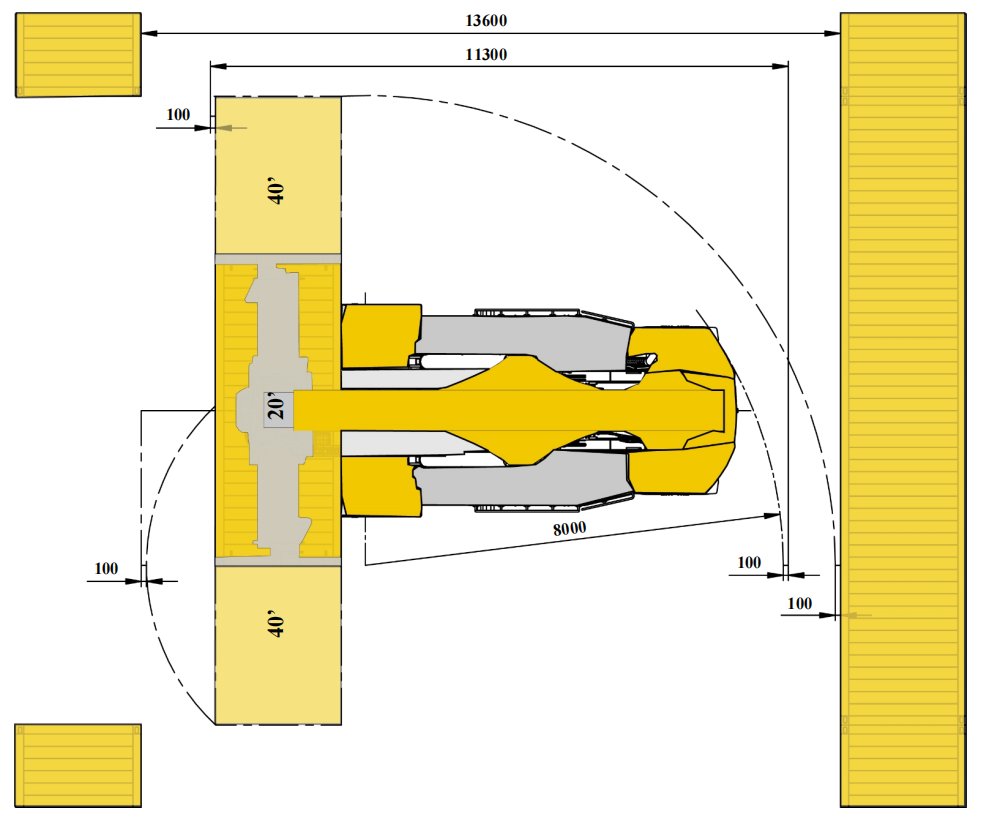

Aisle widt

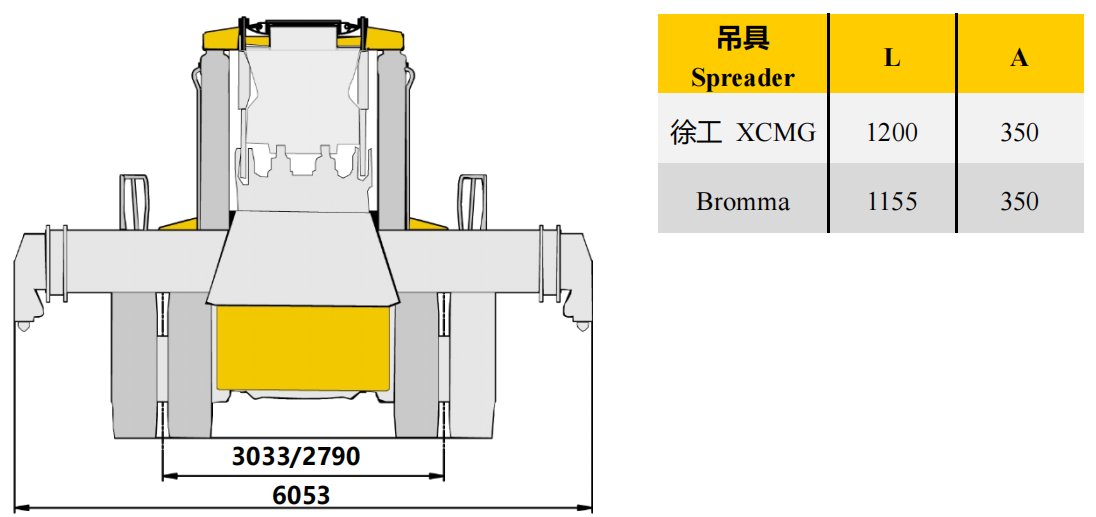

Main Technical Data
| No. | Item | Unit | Parameter | Tolerance | |
1 | length | mm | 11340 | ±2% | |
| 2 | Width | Spreader | mm | 6053 | ±2% |
3 | Front wheel | mm | 4200 | ±2% | |
4 | Height | mm | 4670 | ±2% | |
5 | Wheelbase | mm | 6000 | ±1% | |
6 | Trace | Front | mm | 3033 | ±1% |
7 | Rear | mm | 2790 | ±1% | |
| 8 | Overhang | Front | mm | 840 | ±1% |
| 9 | Rear | mm | 1194 | ±1% | |
| 10 | Min.ground clearance | mm | 350 | ±1% | |
| 11 | Min.turning radius | mm | 8000 | ≤102% | |
| 12 | Max.drawbar pull | kN | 380 | ≥90% | |
| 13 | Max grade ability | % | 33% | ≥90% | |
| 14 | Dead weight | kg | 71200 | ±3% | |
| 15 | Rated lifting capacity | kg | 45000 | —— | |
| 16 | Stacking capacity | —— | 05-5-4 | —— | |
| 17 | Max.lifting height | mm | 15100 | ±1.5% | |
18 | Max.lifting speed | Unloaded | mm/s | 425 | ±10% |
| 19 | Rated load | mm/s | 250 | ±10% | |
| 20 | Max.lowering speed | Unloaded | mm/s | 360 | ±10% |
| 21 | Rated load | mm/s | 300 | ±10% | |
| 22 | Max.traveling speed | Unloaded | km/h | 25 | ±10% |
| 23 | Rated load | km/h | 21 | ±10% | |
| 24 | Aisle width | 20′ | mm | 11300 | ±2% |
25 | 40′ | mm | 13600 | ±2% | |
Main parts list
| N0. | Name | Model | Manufacturer | ||
| 1 | Spreader (XCMG) | XJD450 | Xuzhou XCMG Port Machine Co.,Ltd. | ||
| 2 | Bromma | RSX40 | Bromma | ||
| Spreader (Bromma) | Sweden Bromma | ||||
| 3 | Engine | QSM 11 | Cummins | ||
| XI'AN Cummins | |||||
4 | Transmission | 15.7TE30510 | Dana | ||
| America Dana | |||||
| 5 | Drive Axle | D102PL341 | Kessler | ||
| Germany Kessler | |||||
| 6 | Pump | P105 | Parker | ||
| America Parker | |||||
| 7 | Main value | M402LS-2-4092B | Parker | ||
| America Parker | |||||
| 8 | Telescopic cylinder | XCS45_2.16 | Xuzhou Hydraulic Parts Co.,Ltd.XCMG | ||
| 9 | Luffing Cylinder | XCS45_2.28 | Xuzhou Hydraulic Parts Co.,Ltd.XCMG | ||
| 10 | Tire | 18.00-25 | Guizhou Tyre Co.,Ltd. | ||
| Hongzhou Zhongce Rubber Co.,Ltd. | |||||
| 11 | Cab | XCS4531K.03 | Hubei Qixing Cabin Manufacturing Co.,Ltd. | ||
| 12 | Radiator | XCS4531K.48 | AKG Thermal Systems(Taicang)Co.,Ltd | ||
Notes
All information in the brochure is provided for reference only. Never rely on it to operate the machine. Refer to the operation manual for operation instructions of the machine.
Container reach stacker belong to off-road machines. Local traffic rules and regulations must be observed. For long-distance job site transfer, use a trailer and take GVW, axle load and dimensions of the machine into consideration.
The machine must be operated on firm ground, which gradient does not exceed 3%.
Operation of the machine is permissible only when the wind force is below grade 6. When operating the machine under wind, it is necessary to observe wind speed, equipment status and operating environment. In addition, the wind velocity on the ground is different with that in the high air, and it is also different on flat ground and in city air, which shall be taken into account.
