QY85kH-1 TRUCK CRANE

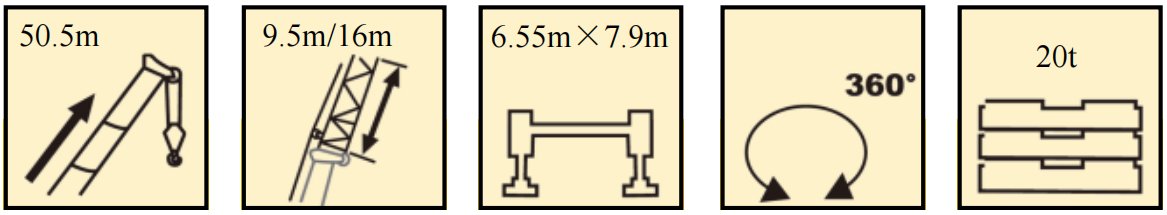

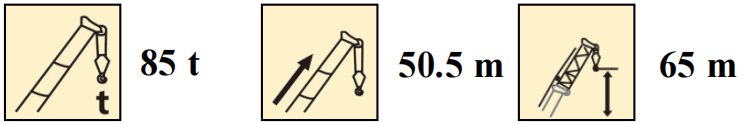

Description

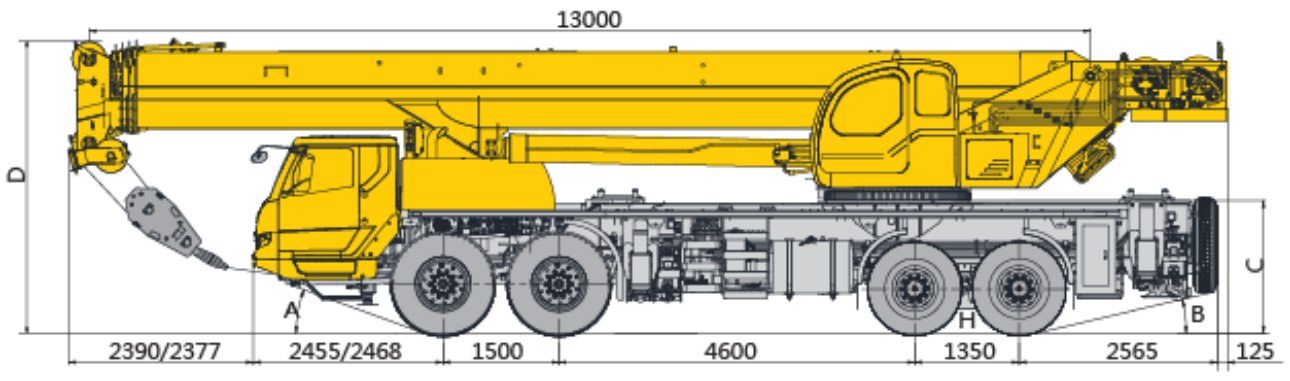

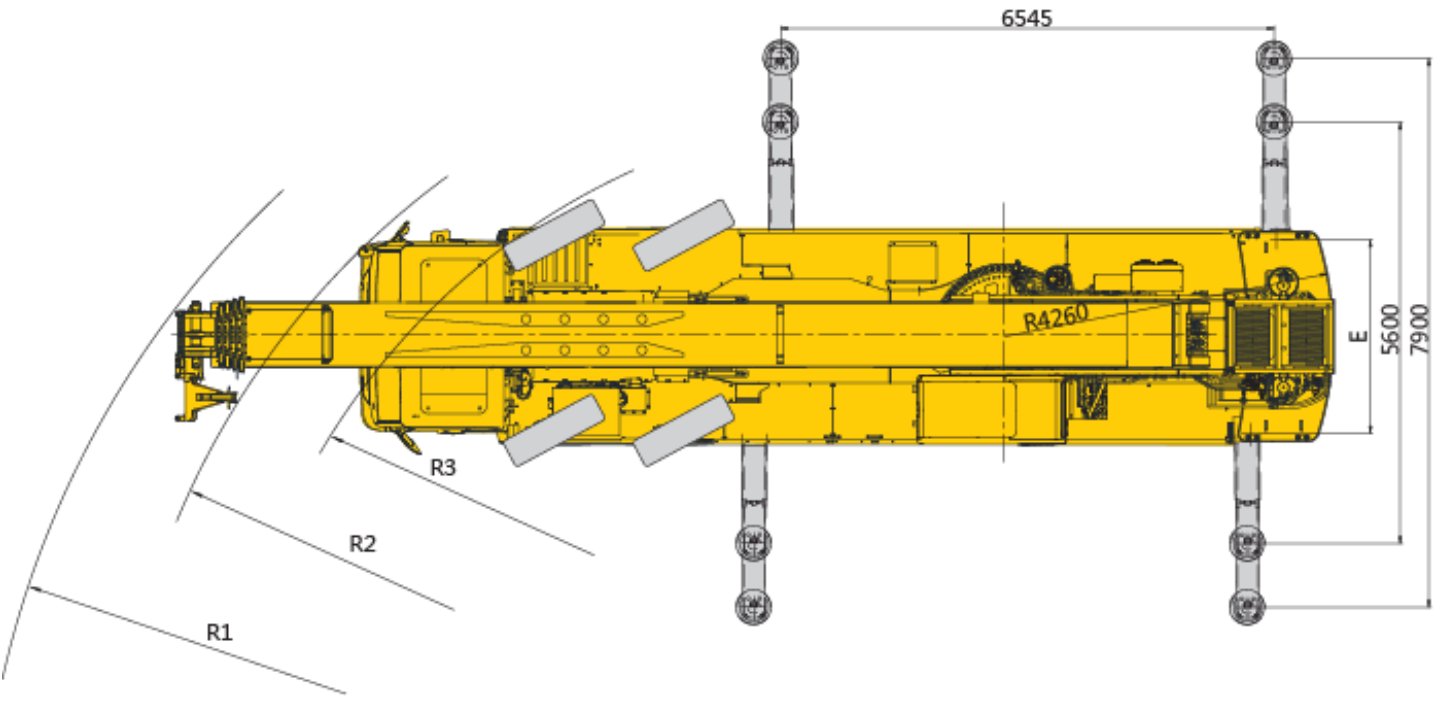

Dimensions




ABCDER1R2R3H
385/95 R25
12.00R24/325/95R24
20°13°1715 3790 2800 15200 13500 12000 373

Remark: Front extension: 2377 mm, front overhang: 2468mm (equipped with Qixing driver’s cab); Front extension: 2390  mm, front overhang: 2455 mm (equipped with XCMG Automobile driver’s cab).


Technical specifications


Chassis

  • Frame:Designed and manufactured by XCMG, it is made of high strength steel with fully covered walking surface and anti-torsion box-typed structure.

  • Outriggers:Four outriggers arranged in H-shape are hydraulically controlled by control levers. Double- stage outrigger beams are adopted. There are outrigger control levers located at each side of the chassis, and there is a level gauge, LED illuminator and speed buttons in each control panel. There is a check valve fitted in each outrigger cylinder, and a double-way hydraulic valve fitted in each jack cylinder.Outrigger float diameter: 435 mm ×435 mm Reaction force of outrigger at max. lifting load: 784 kN

  • Engine:WP9H350E50, in-line, 6-cylinder, water cooled, electric control diesel engine, made by Weichai Engine, with rated power of 257 kW/1900 rpm,max. torque of 1700 Nm/1100-1400 rpm and max. standard torque of  1832 N.m. The engine complies with Euro V emission standard.AdBlue tank capacity: 34.3 L Fuel tank capacity: approx. 430 L.

  • Transmission:Manual transmission, made by Shaanxi Fast Gear Co., Ltd.,  10-forward speed and 2-reverse speed.

  • Axles:High strength axles, made by famous manufacturers. 1st and 2nd axles are for steering, while 3rd and 4th axles for driving.

  • Suspension:Leaf spring suspension is used as front suspension, and rubber suspension as rear suspension.

  • Tires:12 tires and 1 spare tire, 1st and 2nd axles are equipped with single tire, 3rd and 4th axles equipped with double-tire. Tire specifications: 385/95R25 (front axles) 12.00R24/325/95R24 ( rear axles)

  • Brakes:

Service brake: double-circuit air pressure brake, acting on all wheels.

Parking brake: spring-loaded brake, acting on wheels of axles 2, 3 and 4;

Auxiliary brake: engine exhaust brake and engine retarder brake

Steering:Mechanical steering mechanism with a hydraulic booster for 1st and 2nd axles.

  • Driver’s cab:Driver’s cab is equipped with large-view windshield made of safety glass, electric control windshield washer, electric control window glass lifters heater and air conditioner with functions as blowing face or feet, defrosting and defogging, and a radio player, etc. The main driving seat is a mechanical shock absorber seat, and the co-driver’s seat is a single seat. A fire extinguisher of 1 kg is available.

  • Electrical system

24 V  DC, two sets of 12 V battery in series.

Generator 28 V-80 A.


Superstructure

  • Frame:Designed and manufactured by XCMG, made of high strength steel.

  • Hydraulic system:Variable pump driven by chassis engine, used for lifting, luffing and telescoping operation. Load sensing proportional multi-way change valve with impact resistance valve and cavitation-proof valve integrated; air- cooled hydraulic oil radiator.Tank capacity: 1206 L

  • Control system:Hydraulic controlled pilot is used for controlling the superstructure. All crane movements are controlled by hydraulic pump and proportional valve through two control levers at left and right sides.

  • Winch system:Hydraulic control is used for speed regulation. The system is driven by a hydraulic motor through a planetary gear reducer, with a normally closed brake, a balance valve and a grooved drum equipped.

  • Slewing system:Four-point contact-ball slewing ring is driven by the planetary gear reducer of slewing mechanism, which is driven by a hydraulic motor, and may continuously slew 360    . Power control and free slewing function as well as stepless speed regulation are available. The horn switch is equipped on the slewing control lever.

  • Luffing system:A front support double-acting hydraulic cylinder is equipped for luffing operation, with a balance valve fitted.

  • Operator's cab:New steel cab is equipped with a front window. Safety glass and sunshield are used for windows. Standard controls and indicators are ergonomically arranged in the cab. The cab features a new ergonomic seat design with backrest adjustment and armrests with joysticks fitted. Wipers are fitted for the windshield and roof window. Heater and air conditioner are standard.

  • Safety devices:Hydraulic balance valve, hydraulic relief valve, double-way hydraulic valve, LMI, lowering limiter for preventing wire rope from over-releasing, anti-two block at boom head for preventing wire rope from over-winding and tri-colored light bar.

  • Combined counterweight:8 t/5 t/5 t/2 t

  • Hook blocks/55 t/5.5 t


  • Boom:5-section boom with U cross-section,welding structure. Double-cylinder plus ropes telescoping system Boom length: 13 m~50.5 m.

  • Single top:Installed at the boom top, used for single line operation. Its lifting performance is the same as that for boom, but the max. lifting load could not exceed 5.5 t.

  • Fixed jib:Two-section lattice jib, welded structure.Three offset angles of 0  , 15   and 30  . Fixed jib length: 9.5 m~16 m.



Version and optional parts

Version:Standard

Function description:5-section boom of 50.5 m, fixed jib of 16 m.

Note: only the standard version is available.

Optional parts:

  • Angle indicator

  • Anemometer

  • Winch monitoring system

  • Slewing beacon light

  • Backup camera

  • Rotary beacon light (driver’s cab)

  • Outriggers length sensor

  • Outriggers pressure sensor

  • HVAC (operator’s cab)


Weigh



AxleTotal weight
t10 10 12.8 12.8 45.61)
t11.35 11.35 21 21 64.72)

2 t fixed counterweight slab, 55 t and 5 t hook blocks, auxiliary sheave, spare tire and its bracket, and counterweight bracket  are carried at turntable tail; counterweight slab 8 t + 5 t + 5 t, jib and front outrigger float are removed. Short-distance job site transfer: max. travel speed is 10 km/h, carry the 55 t hook block, jib, 20 t counterweight. Steer & Driving type: 8×4×4; Tire specification: 1st and 2nd axles: 385/95R25, 3rd and 4th axles:12.00R24 or 325/95R24.


Parts of line
Weight(kg)

Dimensions(mm)
Remarks
Hook block
55t470 1586×520×452单钩Single hook
5.5t150 717×370×370单钩Single hook


Working speeds


385/95R25(Front axles) 12.00R24/325/95R24)(Rear axles)2.5~8045%


Operation mechanism

Working speedMax.single line pullRope diameter/length
0-135 m/min,single line,4th layer6.7t20 mm/250 m
0-90 m/min,single line,4th layer5.5t20 mm/145m
0-1.8 r/min
Approx.55 s for boom luffing from-0.5°to 81°
Approx.135 s for boom extending from 13m to 50.5m

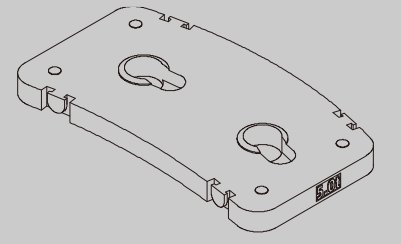

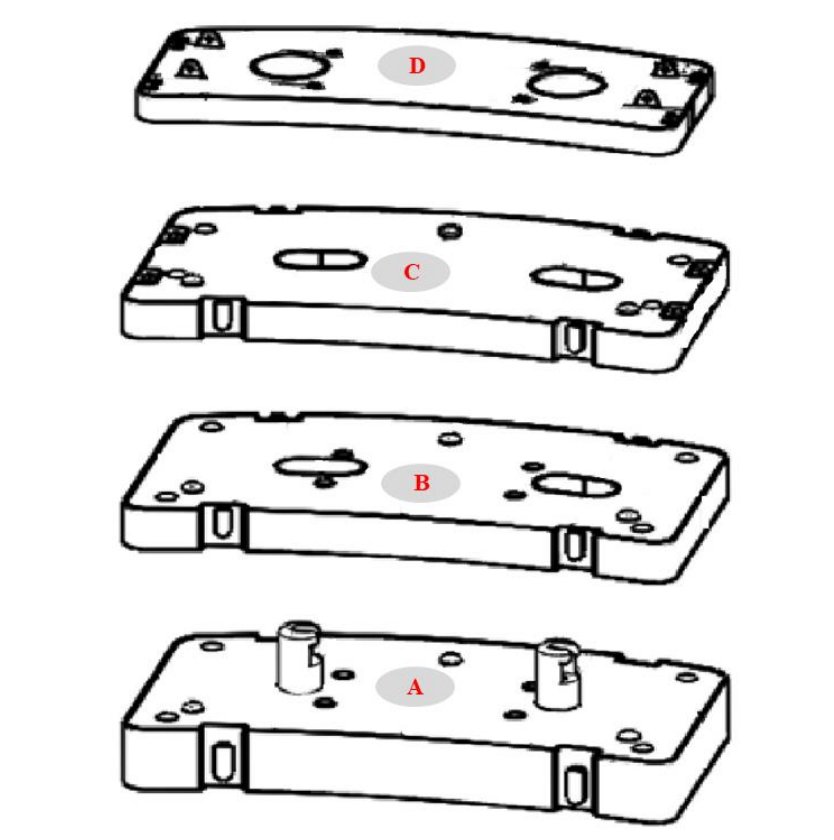

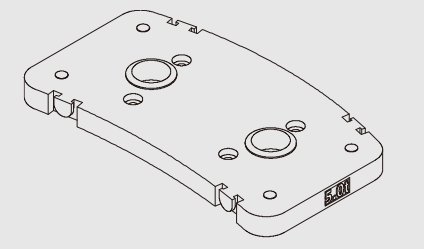

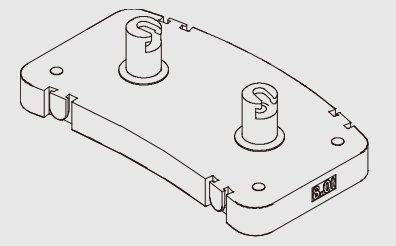

Counterweight



Counterweight

ABCD
Size(L×W×H)mm2790×1652×6902790×1652×2602790×1652×2402790×1242×226
Weight t


Working mode20 t15 t10 t7t2t
CombinationsA+B+C+DA+C+DA+DC+DD


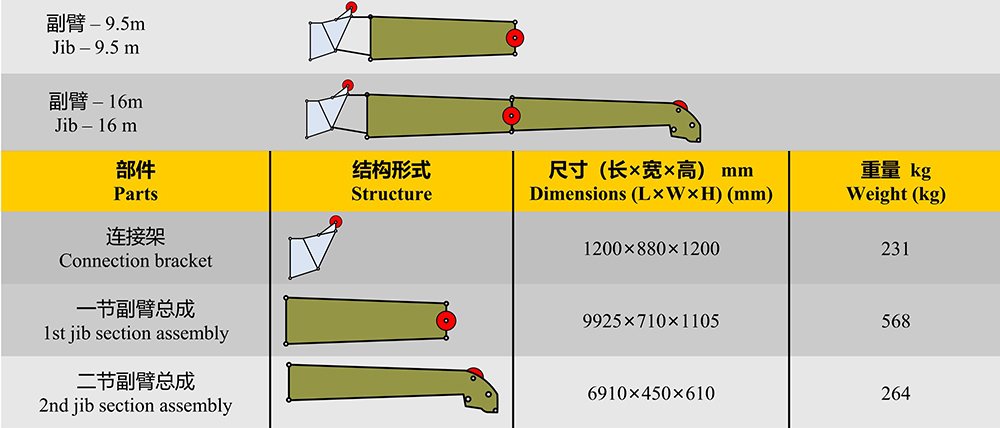

Dimension and weight of parts transported


PartsStructureDimensions(L×W×H)(mm)Weight(kg)No.
Counterweight slab A2790×1652×6908000
Counterweight slab B2790×1652×2605000
Counterweight slab C2790×1652×2405000
Front outrigger float435×435×12045

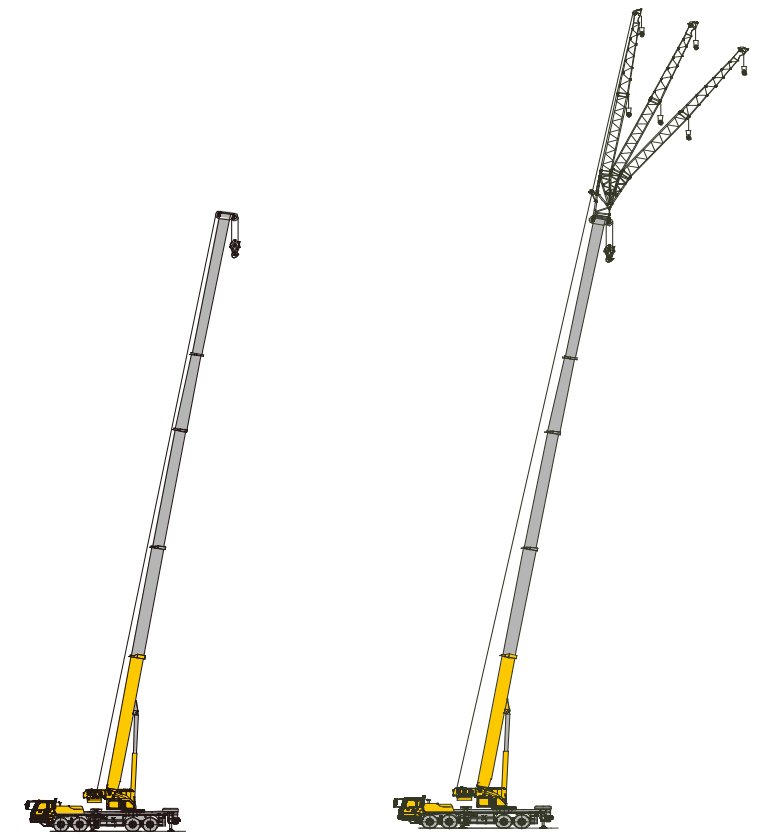

Boom / Jib combinations





Telescopic boom:T:13~50.5 m

Jib:T:50.5 m J:9.5/16 m

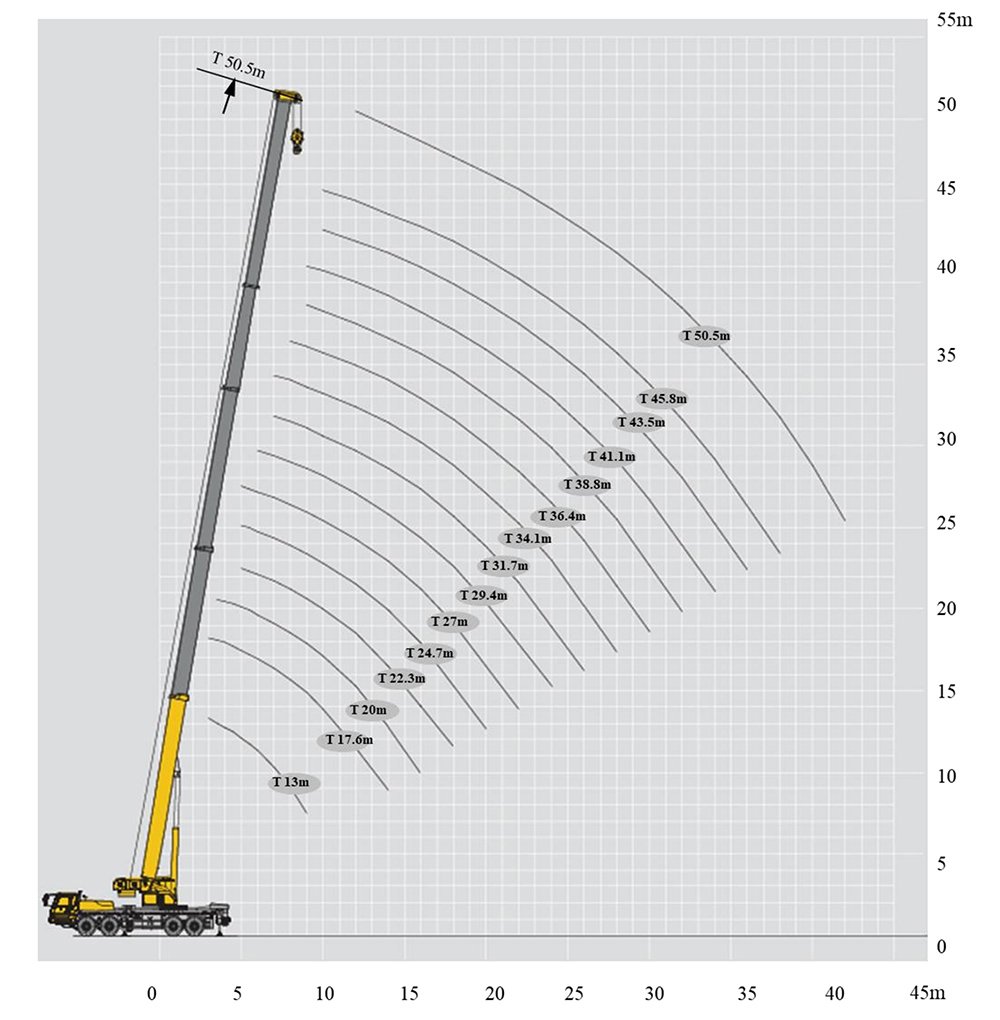

Lifting height chart



Lifting load tables



1317.62022.324.72729.431.734.136.438.841.143.545.850.5
85*70












3.5 75 68 34











3.5
70 67 34











4.5 66 63 34











4.5
60 60 34 40 34 31.5









5.5
55 54 34
40
34 31.5








5.5

50
49
34

40

34
31.5
34








43 42 34 38 34 30 32 32 21.8






8
37 35 34 34 34 29.5 28.9 31 20.8 25.3





8
32 31 30.730.831 27.526.4 29 18.9 23.220.5 16.7


10
27 28.5 28.1 27.5 26 24.1 26 17.7 21.3 19.2 16 18.1 14.9
10
12
21 21.8 20.9 22.5 22 20.4 22.5 15.8 18.4 17.5 14.4 16.2 13.6 12.6 12
14

18 15.7 17.6 18.2 17
18.3

14.2
15.9 15.7 13.1 14.2 12.4 11.7 14
16

14.5 12 13.9 15.3 13.4 14.6 12.8 13.8 14.2 11.9 12.7 11.3 10.8 16
18


9.3 11.3 12.6 10.7 12 11.8 11.5 12.4 10.8 11.2 10.2 10 18
20



10.6 8.7 9.9 10.7 9.4 10.4 9.6 9.9 9.4 8.8 20
22




8.8 8.3 9.3 7.9 8.8 8.9 8.3 8.6 8.1 22
24





5.7 6.6 7.5 8.1 7.7 7.4 24
26






6.9 5.5 6.4 7.2 6.7 6.4 26
28







4.6 5.5 6.3 5.1 5.8 5.5 28
30








3.8 4.7 5.5 4.3 4.7 30
32









4.8 3.7 4.4 32

34












4.2

3.1
3.8
3.5

34
36











2.6 3.3 36
38












2.8 2.5 38
40













2.1 40
42













1.8 42
n12 11 n
2nd0%50%0%100%50%0%100%50%0%100%50%0%100%50%100%2nd
3rd0%0%25%0%25%50%25%50%75%50%75%100%75%100%100%3rd
4th0%0%25%0%25%50%25%50%75%50%75%100%75%100%100%4th

Note:* Capacity class



13 17.6 20 22.3 24.7 27 29.4 31.7 34.1 36.4 38.8 41.1 43.5 45.8 50.5
80 70












3.5 75 68 34











3.5
70 67 34











4.5 66 63 34











4.5
60 60 34 40 34 31.5








5.5 53 53 34 40 34
31.5









5.5

6

48

48

34
40 34
31.5

34









6
40 40 34 38 34 30 32 32 21.8





34 34 34 33 34 29.5 28.9 31 20.8 25.3




30 30 30.5 29 30 27.5 26.4 29 18.9 23.2 20.5 16.7


10
25.5 26.5 25 26.5 26 24.1 26 17.7 21.3 19.2 16 18.1 14.9
10
12
18.2 20.7 17.8 19.8 21.4 19.2 20.6 15.8 18.4 17.5 14.4 16.2 13.6 12.6 12

14


15.813.215 16.514.515.814.215.215.713.114.212.411.7 14
16

12.5 10 11.8 13.2 11.3 12.5 12.8 12 13 11.9 12.5 11.3 10.8 16
18


7.7 9.4 10.8 8.9 10.1 11.2 9.6 10.6 10.8 10.1 10.2 10 18
20



7.6 7.1 8.3 9.3 7.8 8.8 9.6 8.3 8.6 20
22




7.5 5.7 6.9 7.9 6.4 7.3 8.1 6.9 7.6 7.2 22
24





4.6 5.7 6.8 5.3 6.2 5.7 6.5 6.1 24
26






4.8 5.8 4.4 5.2 4.8 5.5 5.1 26
28







4.9 3.5 4.4 5.2 4.7 4.3 28
30








2.9 3.7 4.5 3.3 3.6 30
32









3.1 3.9 2.7 3.4 32
34










3.4 2.2 2.9 2.5 34
36











1.8 2.5 2.1 36
38












2.1 1.7 38
40













1.3 40
n12 11 n
2nd0%50%0%100%50%0%100%50%0%100%50%0%100%50%100%2nd
3rd0%0%25%0%25%50%25%50%75%50%75%100%75%100%100%3rd
4th0%0%25%0%25%50%25%50%75%50%75%100%75%100%100%4th
5th0%0%25%0%25%50%25%50%75%50%75%100%75%100%100%5th

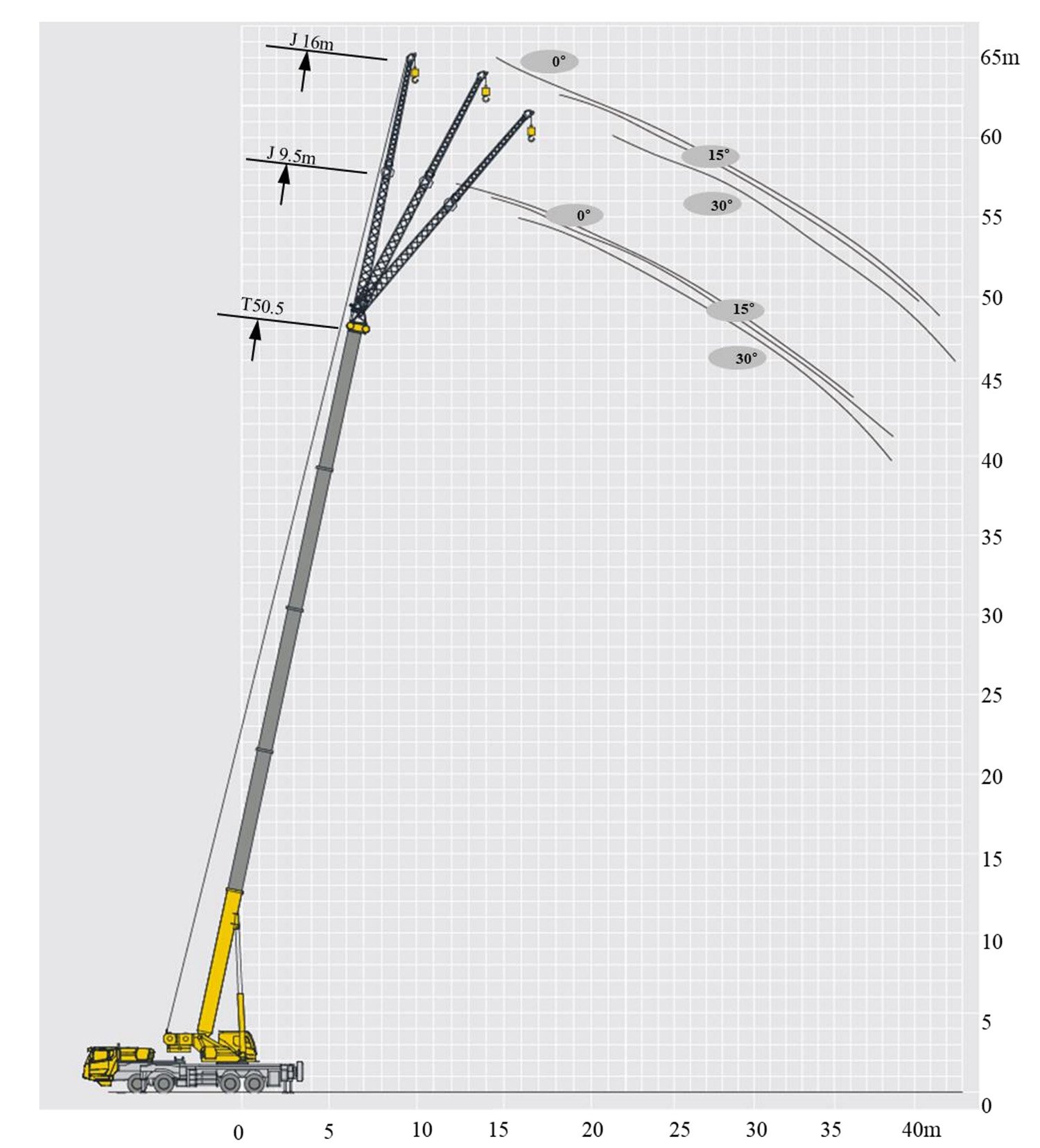

Lifting height chart



Lifting load tables


9.5m                                                                      16m
15°30°15°30°
80 5.5 5.5 2.7 4.0 2.9 1.4 80
78 5.5 5.3 2.5 4.0 2.8 1.3 78
75 5.5 4.9 2.3 4.0 2.5 1.2 75
72 5.5 4.5 2.1 4.0 2.1 1.2 72
70 5.5 4.3 2.0 3.7 2.0 1.2 70
65 4.8 3.8 1.8 3.2 1.8 1.0 65
60 3.6 3.2 1.7 2.6 1.6
60
55 2.9 2.6 1.7 2.1 1.5
55
50 2.2 2.1 1.6 1.5 1.3
50



 9.5m16m
15°30°15°30°
80 5.5 5.5 2.7 4.0 2.9 1.4 80
78 5.5 5.3 2.5 4.0 2.8 1.3 78
75 5.5 4.9 2.3 4.0 2.5 1.2 75
72 5.5 4.5 2.1 4.0 2.1 1.2 72
70 5.5 4.3 2.0 3.7 2.0 1.2 70
65 4.5 3.8 1.8 3.2 1.8 1.0 65
60 3.1 2.9 1.7 2.6 1.6
60
55 2.2 2.1 1.7 1.8 1.5
55
50 1.6 1.5 1.4 1.2 1.1
50


9.5m16m
15°30°15°30°
80 5.5 5.5 2.7 4.0 2.9 1.4 80
78 5.5 5.3 2.5 4.0 2.8 1.3 78
75 5.5 4.9 2.3 4.0 2.5 1.2 75
72 4.4 3.8 2.1 3.6 2.1 1.2 72
70 3.5 3.1 2.0 2.8 2.0 1.2 70
65 1.9 1.8 1.7 1.6 1.4 1.0 65

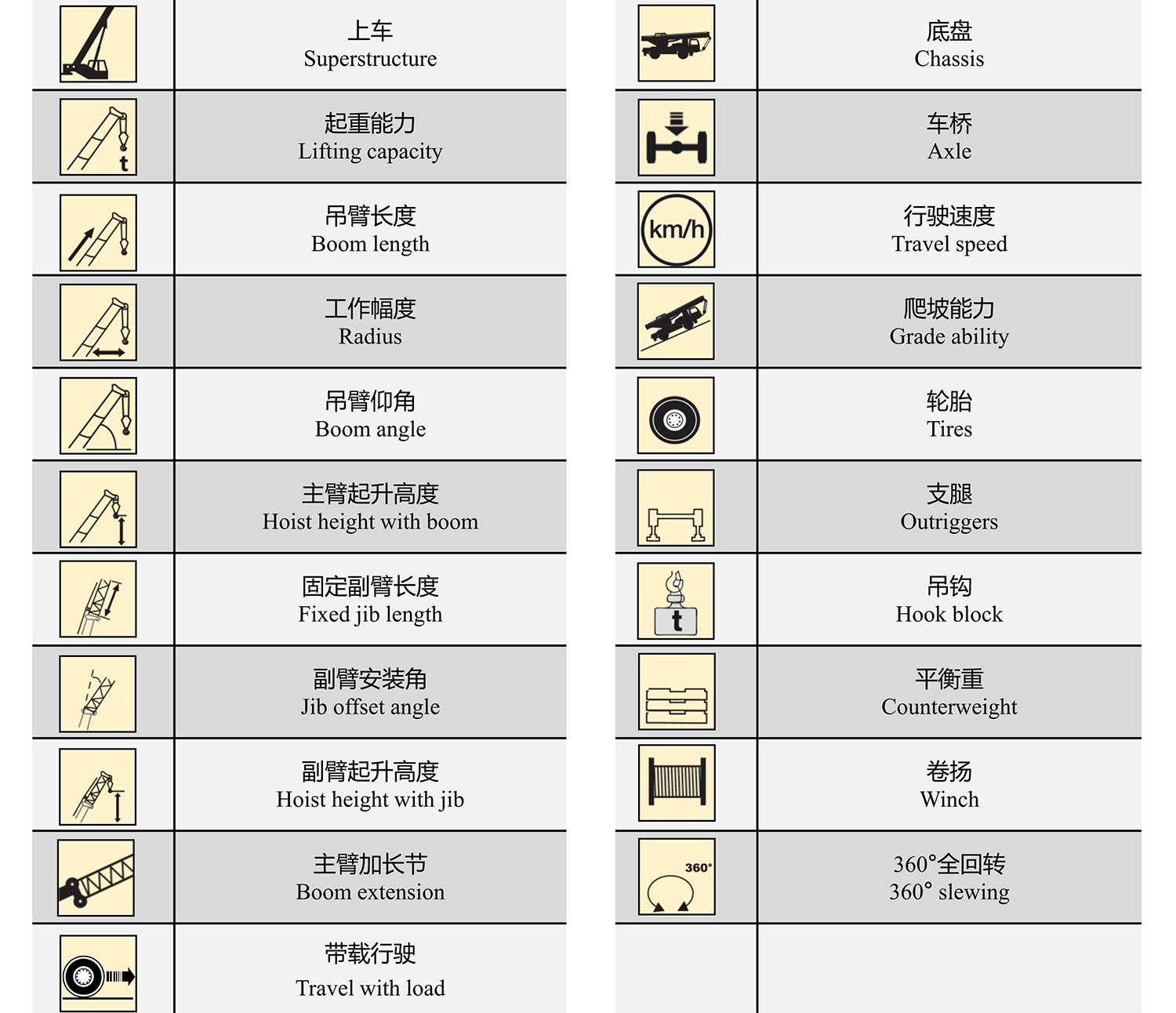

Description of symbols



Table of main technical parameters


CategoryItemUnitParameter
DimensionsDimensions (length×width×height)mm14985×2800×3790
Wheel basemm1500+4600+1350
Track(Front/Rear)mm2408/2063
Front/Rear overhangmm2455(XCMG Automobile)、
2468(Qixing)/2565
Front/Rear extensionmm2390(XCMG Automobile)、
2377(Qixing)/125
WeightMax.permissible weightkg45600
Axle load1st axlekg10000
2nd axlekg10000
3rd axlekg12800
4th axlekg12800
PowerEngine model——WP9H350E50
Engine rated power/rpmkW/(r/min)257/1900
Max.net power/rpmkW/(r/min)252/1900
Max.output torque/rpmN.m/(r/min)1700/1100-1400
TravelMax.travel speedkm/h≥80
Min.stable travel speedkm/h1.7~3
Min.turning diameterm≤24
Min.turning diameter at boom tipm≤30.5
Min.ground clearancemm373
Approach angleo20
Departure angleo13
Braking distance (at 30 km/h)m≤10
Max.grade ability%45
Fuel consumption per 100 kmL43
NoiseExterior noise leveldB(A)≤84
Noise level at seated positiondB(A)≤90


CategoryItemUnitParameter
Main performanceMax.total rated lifting capacityt85
Min.rated working radiusm3.0
Turning radius at turntable
tail
Counterweightmm4460
Auxiliary winchmm4293
Max.load momentBase boomkN.m2965
Fully-extended boomkN.m1764
Fully-extended boom+JibkN.m1237
Outrigger spanLongitudinalm6.545
Lateralm7.9(5.6)
Hoist heightBase boomm13.3
Fully-extended boomm50.5
Fully-extended boom+Jibm65
Boom lengthBase boomm13
Fully-extended boomm50.5
Fully-extended boom+Jibm66.5
Jib offset angleo0,15,30
Working speedBoom raising timeS≤55
Boom fully extended timeS≤125
Max.slewing speedr/min≥1.8
Time for extending and
retracting outriggers
Outrigger beamRetractingS30
ExtendingS40
Outrigger jackRetractingS30
ExtendingS40
Hoisting speed(single line,
      4th layer,no load)
Main winchm/min135
Auxiliary winchm/min90
NoiseExterior noise leveldB(A)109
Noise level at seated positiondB(A)85


Note

  • The total rated load given in the rated load charts are the  maximum lifting capacity when the crane is set up on firm and  level ground. The possible weight for the load to be lifted is  therefore reduced according to the weights of the afore mentioned tackle.

  • The working radius is the horizontal gravity center distance of  the load from the rotational axis of the crane superstructure  measured at the ground, and it is the actual value including  loaded boom deflection. Take boom deflection into consideration before beginning a lifting operation.

  • A lifting operation is permissible only when the wind force is  below grade 5 (instantaneous wind speed of 14.1 m/s, wind  pressure of 125 N/㎡).

  • Before beginning lifting, the operator should know the weight of  the load to be lifted and its working range, and should then  select proper working conditions. Never operate the crane  beyond the limit shown in the chart. The working condition should be depended on the smaller value when the radius and  boom length falls between two adjacent values.

  • Observe the boom angle limit. Never operate the crane with the  boom angle beyond the recommended limit even if a load is not  being carried. Otherwise, the crane will tip. 6. Extend boom sections according to the specified percentage.
